Convenience Stores Easy Install Container House Flat Pack Expandable Mobile Bar Custom Modern Outdoor ZCS

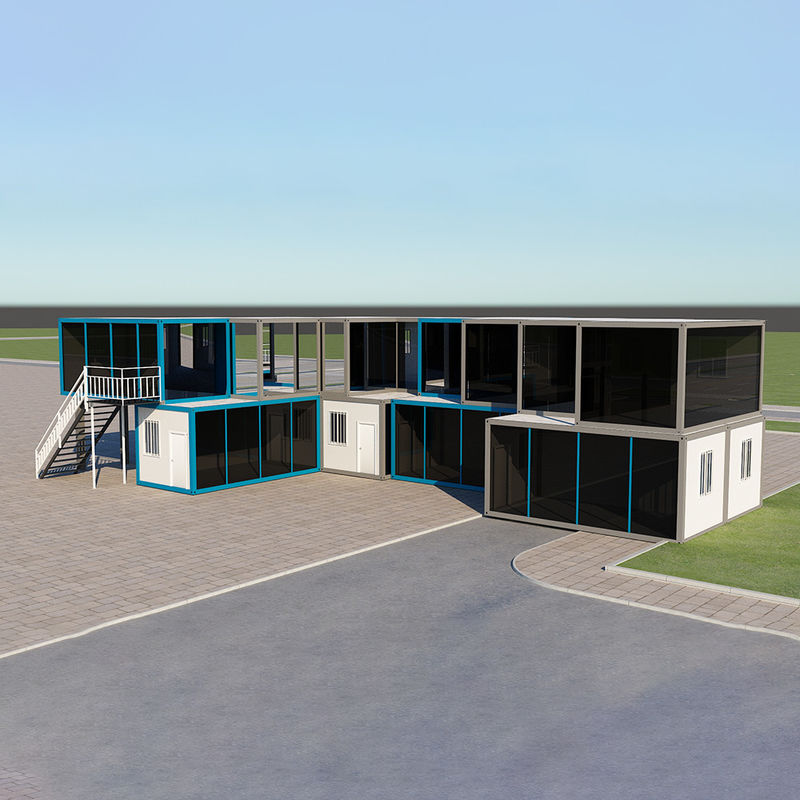

One-piece living prefabricated Modular house including bathroom toilet kitchen and bedroom
ZCS Container House Specifcation
|
|
|
|
UNIT
|
|
|
|
|
170mm width ,2.0mm cross beams with gal.80g/㎡
|
|
|
gal.C80 cross supporting part,30*30mm gal tubes,20*20mm gal tubes
|
|
|
|
|
|
|
|
|
|
160mm width ,2.0mm gal.cross beams with gal.80g/㎡
|
|
|
gal tubes 50*100*1.3mm cross suppports with gal.80g/㎡
|
|
|
|
|
2.0mm gal.column with gal.80g/㎡,160mm*160mm width&L2530mm height
|
|
|
L connector 10mm with gal.80g/㎡
|
|
|
L style column strengthened parts
|
|
|
|
|
|
|
|
|
|
|
|
|
|
inner-hex bolts12*40mm with gal.(welded&Electrostatic spraying)
|
|
|
|
|
white electrostatic spray
|
|
|
|
|
|
flashing parts all in one piece
|
|
|
|
|
|
0.45mm thickness color-steel tiles with 360° fastened,include butyl tape for waterproofing
|
|
|
|
|
|
75mm thickness glasswool insulatio with silver paper(14kg/m³)
|
|
|
|
|
|
|
|
|
|
|
|
18mm thickness special cement-fibre floor
|
|
|
|
|
|
|
|
INTERNAL DECORATION PARTS
|
|
PVC finished skirting lines
|
|
|
0.45mm thickness color-steel white-gray concave line
|
|
|
|
|
|
|
0.6mm color-steel sheets,1.0mm thickness frame,840*1970mm(adapts to 1150 style wall panels)
|
|
|
HIGH-GRADE PLASTIC-STEEL WINDOWS
|
insulation with 3.0mm thinkess glasses,with anti-theft frames and screening,1150*930mm(adapts to 1150 style wall panels)
|
|
|
DOUBLE 0.4MM SANDWICH PANELS
|
75mm with 80kg/m³ density(950 style)
|
|
|
|
sealant,drill-tail screws
|
|
|
HIGH-GRADE ELECTRICITY PARTS
|
6m²,2.5m²,1.5m² copper electric line as international standard,high-quality socket for air-conditioning(1pc),five-hole socket 1
pc,single-open switch 1pc,40*60mm 24W LED ceiling light 2pcs,J-8 electricity-distribution box 1pc,32A leakage protector 1pc,2P10A
circuit breaker 1pc,32A industry socket 1 set,industry socket box 1pc,concealed conjunction box 6pcs
|
About US
Suzhou Zhongchengsheng International Trade Co., Ltd is located in Suzhou City. Our production factory is Suzhou Zhongchengsheng Metal Material Manufacture Co., Ltd. which is a professional enterprise in China's light steel construction industry and a high -tech industrial company integrating R & D, production and sales. Our main products are assembled container house, folding container house, flat pack container house, assemble container house, steel structure house and so on.
We have a perfect supply chain with more than 16 years of experience in raw materials and manufacturing, and can manufacture houses to the satisfaction of our customers according to their customized needs. We are committed to providing first- class quality and efficient pre- sales and after- sales services, and strictly control the quality of our products. Our company has passed the inspection of the national quality inspection department. We have been focusing on providing integrated housing solutions for builders, design institutes, developers and building material dealers.
FAQ
Q1: Are you manufacture factory or trading company ?
A1: We are both manufacture factory and trading company . And you are welcomed to visit us at any time. The quality control flow and sales team will show you.Our factory located in the biggest supplier modular build production based of China--The city is Suzhou of Jiangsu Province.
Q2: What are your main products ?
A2:Our main products have prefab house, Assemble container house, Folding container house, Flat pack container house, sandwich panel and other steel constructive materials.
Q3: Is it difficult to build a prefab house ?
A3: Absolutely not, you can build the house independently according to the construction drawings as long as you know how to use an electric tool.
Q4: What will client provide before factory offers good quotation ?
A4:You tell us container house type, size, quantity, material of roof, wall, floor and other parts, we will check and fast offer you quotation.
Q5: Could you please design a new and unique prefab house for me ?
A5:Absolutely! We are able to provide you with not only construction scheme, but landscape design! One-stop service is our outstanding superiority with no doubt.
