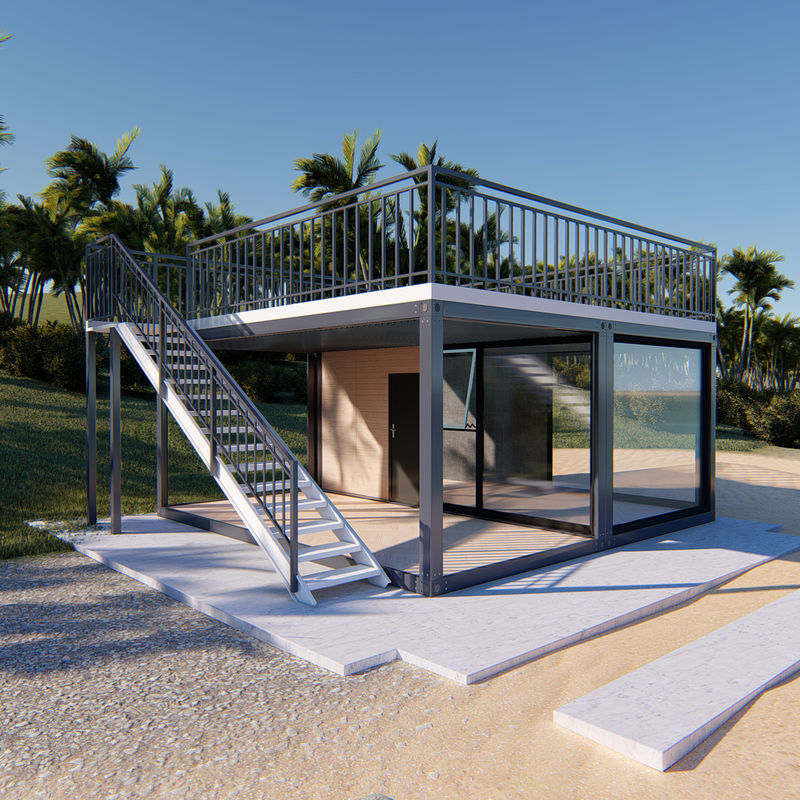

Luxury Assembled 20/40 ft Modular Container House Prefabricated Homes Prefab Modern House For Sale
One-piece living prefabricated Modular house including bathroom toilet kitchen and bedroom
ZCS Container House Specifcation
| Specification |
Assemble Isolation Room |
| Stand Room |
StairsRoom |
Waterway function Room |
| External size(mm) |
L6058*W3022*H2896 |
| Internal size(mm) |
L5846*W2810*H2525 |
| Botom |
Structure |
4.0 galvanized roller beam, 3.0 galvanized roller bottom beam, galvanized small corner pieces |
| Floor |
18mm Cement fiberboard |
| Floor leather |
1.5mmPVC Floor leather |
1.6mm Anti-slip floor leather |
| Roof |
Structure |
3.0 galvanized roller beam, 1.6 galvanized roller beam, galvanized small corner pieces, 16 round tube support |
| Out Roof |
0.45 Color-coated profiled steel plate, color: white and gray |
| Inlet Roof |
0.5mm Color-coated profiled steel plate, color: white and gray |
| Power box |
1 Power sink box |
| Keep warm |
100mm Single aluminum foil glass wool (refractory)(14kg/m³) |
| Wall |
Side wall |
75mm rock wool sandwich panel (80kg/m³), double-sided 0.326 base material, single-sided micro-embossing |
| door |
Single-open steel door, door frame size: W840*H2035, matching door lock: stainless steel primary color handle lock |
| window |
Plastic steel sliding window, single glass tempered, with rod and screen window, sleeve type, front and rear window frame size:W1120*H1120 |
Plastic steel top-hung window (external push).800*400, single glass frosted |
| Angle post |
Structure |
L186*W152*H2546, 3.0 Galvanized sheet bending |
| Electric |
Side board power distribution, 3 low and 1 high |
No socket panel |
No socket panel |
| Light |
LED Three anti-light (30W,220V,50HZ,IP54) |
Ceiling light |
LED Ceiling light |
| 220V-50HZ-28W-Sound and light control |
220V-50HZ-12W |
| Interior decorations |
PVC skirting, color:RAL8017 |
| Steel surface treatment |
Main body galvanized steel structure, non-galvanized steel structure surface sanding and spraying zinc-rich primer |
| Spraying |
Topcoat: water-based acrylic topcoat, total dry film thickness: 70um; hidden parts of the bottom frame (inner surface of roller beam, bottom beam, lower surface of the floor): one bitumen paint, dry film thickness: 110um. For details, please refer to the painting specification-steel structure galvanized packing box water-based paint |
| Installation Notes |
Note: The ceiling board needs to be installed on site, with an indoor partition structure. The ceiling board in the partition area needs to use a three-jaw suction cup to pull the ceiling board and fix the ceiling board with the aluminum profile pull nails; |
ZCS Container House Catalogue
| Model |
Size |
Area |
Structure |
| ZCS Container House-A1 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
|
17m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
|
| ZCS Container House-A2 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
|
17m2 |
Living room *1
Bedroom*1 |
| ZCS Container House-A3 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
|
17m2 |
Living room *1
Bedroom*1
Bathroom*1
Toilet*1 |
| ZCS Container House-A4 |
4m*3m*2.8m/13.12ft*9.84ft*9.18ft |
21.65m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
|
| ZCS Container House-A5 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
Deck*1 |
| ZCS Container House-A6 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
51m2 |
Living room *1
Bedroom*2
Bathroom*1
Toilet*1
Kitchen*1 |
| ZCS Container House-A7 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
51m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
|
| ZCS Container House-A8 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*3
Kitchen*1
Toilet*2
Bathroom*2 |
| ZCS Container House-A9 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
65m2 |
Living room *1
Bedroom*2
Bathroom*1
Toilet*1
Kitchen*1 |
| ZCS Container House-A10 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
51m2 |
Living room *1
Bedroom*2
Kitchen*1
Toilet*1
Deck*1 |
| ZCS Container House-B1 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
102m2 |
Living room *1
Bedroom*1
Bathroom*1
Toilet*1
Kitchen*1 |
| ZCS Container House-B2 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
Terrace*1 |
| ZCS Container House-B3 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*3
Toilet*3
Kitchen*1 |
| ZCS Container House-B4 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
5.95m*1.5m*2.8m /19.52ft*4.92ft*9.18ft |
97.2m2 |
Living room *3
Bedroom*3
Toilet*3
Terrace*1
Kitchen*2 |
| ZCS Container House-B5 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
102m2 |
Living room *2
Bedroom*3
Kitchen*1
Toilet*2
Terrace*1
|
More Products Available
10 X 10 Container House
10x20 Container House
12m Office Containers
2 X 20 Ft Container House
2 X 40 Ft Container House
20ft Flat Pack Container
3 20 Ft Container Home
30ft Container Office
40 Feet Container Office
40ft Flat Pack Containers
4m Flat Pack Container
6m Flat Pack Containers
Container Home 20'
Container Home 20 Feet
Container Home 40ft For Sale
Container Office 10ft
Demountable Container House
Detachable Container Home
Flat Pack Accommodation Units
Flat Pack Container Homes
Luxury Expandable Container House
Modular Expandable Homes
Prefab Flat Pack Home
Flat Pack 1 Bedroom House
2 Bedroom Flat Pack House
3 Bedroom Flat Pack House
4 Bedroom Flat Pack House
5 Bedroom Flat Pack House
2 Story Flat Pack Homes
Double Storey Container Office
Prefabricated Container Office
Modular Prefabricated Container
Prefabricated Container Van
10ft Container Van
20ft Container Van
40 Ft Container Van
40ft Container Van
Prefab Container Van
Modular Container Van
Container Van Assembly
Foldable Container Van
2 Bedroom Prefab Container Homes
3 Bedroom Prefab Container Homes
Foldable 20ft Container
Portable Foldable House
Prefab Fold Out Container Homes
Foldable Mobile Container House
Expandable Folding House
Collapsible Container House
Container Module
Fast Assembly Container House
Modular Container
Prefab Container House
Assemble Container House
About US
Suzhou Zhongchengsheng International Trade Co., Ltd is located in Suzhou City. Our production factory is Suzhou Zhongchengsheng Metal Material Manufacture Co., Ltd. which is a professional enterprise in China's light steel construction industry and a high -tech industrial company integrating R & D, production and sales. Our main products are assembled container house, folding container house, flat pack container house, assemble container house, steel structure house and so on.
We have a perfect supply chain with more than 16 years of experience in raw materials and manufacturing, and can manufacture houses to the satisfaction of our customers according to their customized needs. We are committed to providing first- class quality and efficient pre- sales and after- sales services, and strictly control the quality of our products. Our company has passed the inspection of the national quality inspection department. We have been focusing on providing integrated housing solutions for builders, design institutes, developers and building material dealers.
FAQ
Q1: Are you manufacture factory or trading company ?
A1: We are both manufacture factory and trading company . And you are welcomed to visit us at any time. The quality control flow and sales team will show you.Our factory located in the biggest supplier modular build production based of China--The city is Suzhou of Jiangsu Province.
Q2: What are your main products ?
A2:Our main products have prefab house, Assemble container house, Folding container house, Flat pack container house, sandwich panel and other steel constructive materials.
Q3: Is it difficult to build a prefab house ?
A3: Absolutely not, you can build the house independently according to the construction drawings as long as you know how to use an electric tool.
Q4: What will client provide before factory offers good quotation ?
A4:You tell us container house type, size, quantity, material of roof, wall, floor and other parts, we will check and fast offer you quotation.
Q5: Could you please design a new and unique prefab house for me ?
A5:Absolutely! We are able to provide you with not only construction scheme, but landscape design! One-stop service is our outstanding superiority with no doubt.
