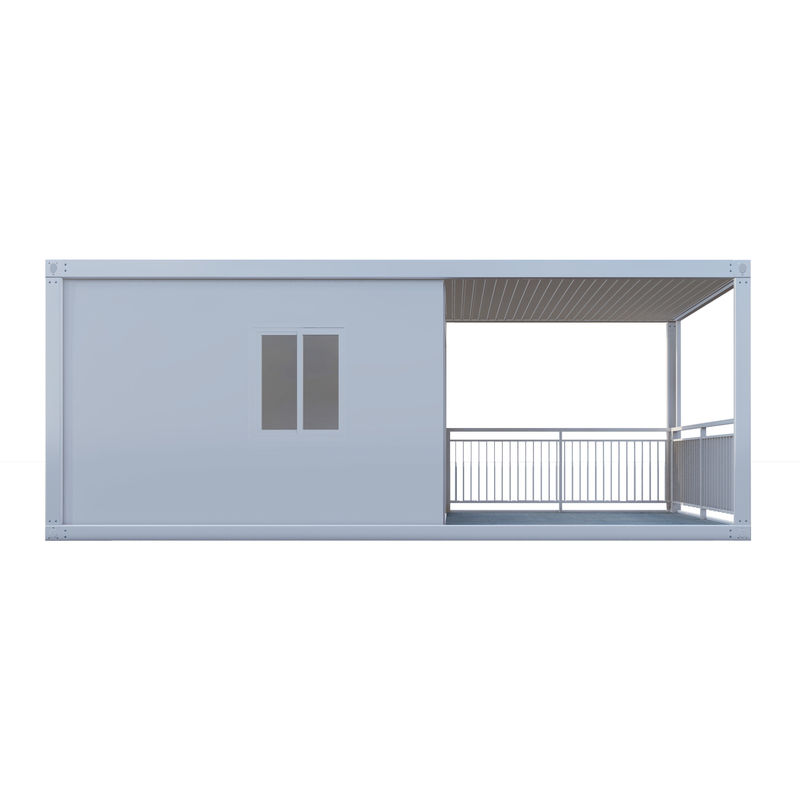

Wide Range Of Uses Shipping Container House Prefabricated Homes For Booth/Outdoor
One-piece living prefabricated Modular house including bathroom toilet kitchen and bedroom
ZCS Container House Specifcation
Technical Parameter of Expandable Container
(Export standard configurations)
|
|
|
External dimension (mm)
|
6320*5900*2480
|
|
Internal dimension(mm)
|
6160*5560*2240
|
|
Folding state(mm)
|
2200*5900*2480
|
|
Total mass(kg)
|
|
|
|
Middle roof beam
|
T2.5mmQ235B
|
|
Middle base beam
|
T2.5mmQ235B
|
|
Side beam
|
t1.5mmQ235B
|
|
Middle pillar
|
T2.5mmQ235B
|
|
Side wall frame
|
t1.5mmQ235B
|
|
Sub-frame
|
t1.5mmQ235B
|
|
Hanging head
|
t4mmQ235B
|
|
Folding hinge
|
13mm Galvanized hinge
|
|
Protective coating for integral frame
|
Electrostatic spraying/Straight white plastic powder
|
|
Top and bottom of middle cabinet
|
80*100
|
Top and bottom of side cabinet
|
40*60*1.5 thick square tube
|
|
|
External roof board
|
t0.5mm Galvanized plate
|
|
Internal ceiling board
|
t831 internal ceiling board
|
|
|
Heat preservation of middle top
|
T50mm glass filament cotton(Side top 50 foam plate)
|
|
Side wall, front wall panel& back wall panel
|
t50mm-Color steel plate with glass filament cotton or t50mm-Foam plate
|
|
Internal partition
|
t50mm Foam board
|
|
Internal washroom
|
About 1700*1500mm (can be adjusted)
|
|
|
Middle floor
|
Fireproof glass magnesium floor 15mm
|
|
Floor on both sides
|
Bamboo flooring
|
|
Electrical system
|
Electrical wiring, install in strict accordance with the moisture-proof specifications, all electrical products shall comply with CE certification. Connect the circuit according to the circuit engineering specification, indoor:2 LED lights, 2 Ceiling lamp, 3 five- hole single socket, 1 single switch, 3 ten -hole socket,1 Air conditioner socket,1 20A -Leakage protector.
Voltage 220V, 50HZ
|
|
Common Security Door
|
2 sets of Common security door
|
|
Window
|
4 sets of Sliding plastic steel single glass window (920*1120mm)
|
|
Quality guarantee
|
1 year
|
ZCS Container House Catalogue
| Model |
Size |
Area |
Structure |
| ZCS Container House-A1 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
|
17m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
|
| ZCS Container House-A2 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
|
17m2 |
Living room *1
Bedroom*1 |
| ZCS Container House-A3 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
|
17m2 |
Living room *1
Bedroom*1
Bathroom*1
Toilet*1 |
| ZCS Container House-A4 |
4m*3m*2.8m/13.12ft*9.84ft*9.18ft |
21.65m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
|
| ZCS Container House-A5 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
Deck*1 |
| ZCS Container House-A6 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
51m2 |
Living room *1
Bedroom*2
Bathroom*1
Toilet*1
Kitchen*1 |
| ZCS Container House-A7 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
51m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
|
| ZCS Container House-A8 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*3
Kitchen*1
Toilet*2
Bathroom*2 |
| ZCS Container House-A9 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
65m2 |
Living room *1
Bedroom*2
Bathroom*1
Toilet*1
Kitchen*1 |
| ZCS Container House-A10 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
51m2 |
Living room *1
Bedroom*2
Kitchen*1
Toilet*1
Deck*1 |
| ZCS Container House-B1 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
102m2 |
Living room *1
Bedroom*1
Bathroom*1
Toilet*1
Kitchen*1 |
| ZCS Container House-B2 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
Terrace*1 |
| ZCS Container House-B3 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*3
Toilet*3
Kitchen*1 |
| ZCS Container House-B4 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
5.95m*1.5m*2.8m /19.52ft*4.92ft*9.18ft |
97.2m2 |
Living room *3
Bedroom*3
Toilet*3
Terrace*1
Kitchen*2 |
| ZCS Container House-B5 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
102m2 |
Living room *2
Bedroom*3
Kitchen*1
Toilet*2
Terrace*1
|
More Products Available
10 X 10 Container House
10x20 Container House
12m Office Containers
2 X 20 Ft Container House
2 X 40 Ft Container House
20ft Flat Pack Container
3 20 Ft Container Home
30ft Container Office
40 Feet Container Office
40ft Flat Pack Containers
4m Flat Pack Container
6m Flat Pack Containers
Container Home 20'
Container Home 20 Feet
Container Home 40ft For Sale
Container Office 10ft
Demountable Container House
Detachable Container Home
Flat Pack Accommodation Units
Flat Pack Container Homes
Luxury Expandable Container House
Modular Expandable Homes
Prefab Flat Pack Home
Flat Pack 1 Bedroom House
2 Bedroom Flat Pack House
3 Bedroom Flat Pack House
4 Bedroom Flat Pack House
5 Bedroom Flat Pack House
2 Story Flat Pack Homes
Double Storey Container Office
Prefabricated Container Office
Modular Prefabricated Container
Prefabricated Container Van
10ft Container Van
20ft Container Van
40 Ft Container Van
40ft Container Van
Prefab Container Van
Modular Container Van
Container Van Assembly
Foldable Container Van
2 Bedroom Prefab Container Homes
3 Bedroom Prefab Container Homes
Foldable 20ft Container
Portable Foldable House
Prefab Fold Out Container Homes
Foldable Mobile Container House
Expandable Folding House
Collapsible Container House
Container Module
Fast Assembly Container House
Modular Container
Prefab Container House
Assemble Container House
About US
Suzhou Zhongchengsheng International Trade Co., Ltd is located in Suzhou City. Our production factory is Suzhou Zhongchengsheng Metal Material Manufacture Co., Ltd. which is a professional enterprise in China's light steel construction industry and a high -tech industrial company integrating R & D, production and sales. Our main products are assembled container house, folding container house, flat pack container house, assemble container house, steel structure house and so on.
We have a perfect supply chain with more than 16 years of experience in raw materials and manufacturing, and can manufacture houses to the satisfaction of our customers according to their customized needs. We are committed to providing first- class quality and efficient pre- sales and after- sales services, and strictly control the quality of our products. Our company has passed the inspection of the national quality inspection department. We have been focusing on providing integrated housing solutions for builders, design institutes, developers and building material dealers.
FAQ
Q1: Are you manufacture factory or trading company ?
A1: We are both manufacture factory and trading company . And you are welcomed to visit us at any time. The quality control flow and sales team will show you.Our factory located in the biggest supplier modular build production based of China--The city is Suzhou of Jiangsu Province.
Q2: What are your main products ?
A2:Our main products have prefab house, Assemble container house, Folding container house, Flat pack container house, sandwich panel and other steel constructive materials.
Q3: Is it difficult to build a prefab house ?
A3: Absolutely not, you can build the house independently according to the construction drawings as long as you know how to use an electric tool.
Q4: What will client provide before factory offers good quotation ?
A4:You tell us container house type, size, quantity, material of roof, wall, floor and other parts, we will check and fast offer you quotation.
Q5: Could you please design a new and unique prefab house for me ?
A5:Absolutely! We are able to provide you with not only construction scheme, but landscape design! One-stop service is our outstanding superiority with no doubt.
