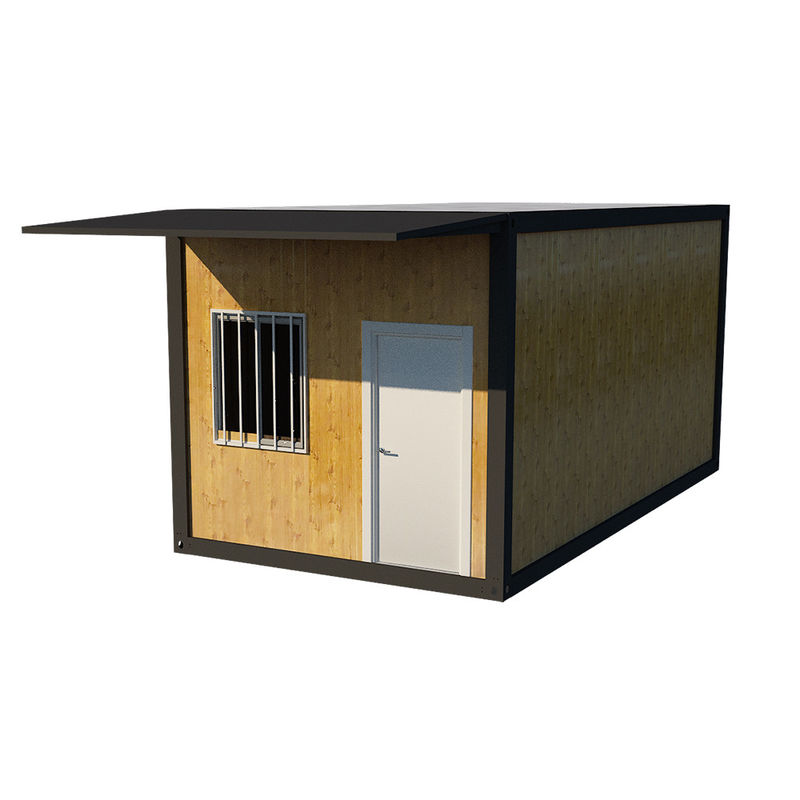

Modern Container Homes Mobile Convenience Stores Modular Hotel Granny Flat Moveable Prefabricated House
ZCS Container House Specifcation
| Specification |
Length(mm) |
6055(5780) |
| Width(mm) |
2435(2250) |
| Height(mm) |
2896(2600) |
| Weight |
Around 2000kg |
| Roof type |
Flat roof, with internal drainage |
| Storey |
≤3 storey |
| Design parameter |
Life time of steel frame |
20 years |
| Earth live load |
2.0KN/m2 |
| Roof live load |
0.5KN/m2 |
| Wind load |
0.6KN/m2 |
| Earthquake resistance |
grade 8 |
| Steel structure |
Corner column |
Galvanized cold rolled steel, t=3.0mm, material:Q235B |
| Roof beam |
Galvanized cold rolled steel, t=3.0mm, material:Q235B |
| Roof secondary beam |
C channel steel, t=1.6mm, material:Q235B |
| Earth beam |
Galvanized cold rolled steel, t=3.0mm, material:Q235B |
| Earth secondary beam |
C channel stee, t=2.0mm, material: Q235B |
| Paint |
Graphene powder spraying(static electricity spray process) |
| Roof |
Roof panel |
0.5mm thickness galvanized steel sheet, color: white grey |
| Insulation |
100mm fiberglass wool insulation with one side aluminum film, |
| desity≥14kg/m³, combustion performace: grade A non-combustible |
| Ceiling |
0.5mm thickness steel sheet, color white grey |
| Floor |
Decoration floor |
No |
| Base panel |
19mm fiber cement board, density≥1.3g/cm³ |
| Insulation(optional) |
100mm fiberglass wool with one side aluminum film, |
| density≥14kg/m³, combustion performace: grade A non-combustible |
| Block panel (optional) |
0.3mm galvanized steel sheet |
| Wall |
Thickness |
75mm fiberglass sandwich panel, outer panel is 0.5mm orange peel galvanized steel sheet, ivory white color, PE coating, inner |
| panel is 0.5mm galvanized flat steel sheet, white grey, PE coating. |
| Insulation |
75mm fiberglass insulation, density≥64kg/m³, combustion performace: grade A non-combustible |
| Low-e glass |
6mm glass+12mm hollow glass+6mm glass, low-e glass, aluminum frame |
| Normal glass |
6mm glass+12mm hollow glass+6mm glass, normal glass, plastic steel frame |
| Door |
Specification(mm) |
Single door, width x height=1660*2030 |
| Material |
Steel door |
| Electric system |
Voltage |
220V~250V |
| Electric wire |
Indoor power line is 6 m2, lighting switching line is 1.5m2 |
| Disconnector |
Miniature circuit breaker |
| Lighting |
Two unit single-tube daylight lamp, 36W |
| Socket |
With socket |
| Water system |
Water supply |
PPR |
| Drainage |
UPVC |
About US
Suzhou Zhongchengsheng International Trade Co., Ltd is located in Suzhou City. Our production factory is Suzhou Zhongchengsheng Metal Material Manufacture Co., Ltd. which is a professional enterprise in China's light steel construction industry and a high -tech industrial company integrating R & D, production and sales. Our main products are assembled container house, folding container house, flat pack container house, assemble container house, steel structure house and so on.
We have a perfect supply chain with more than 16 years of experience in raw materials and manufacturing, and can manufacture houses to the satisfaction of our customers according to their customized needs. We are committed to providing first- class quality and efficient pre- sales and after- sales services, and strictly control the quality of our products. Our company has passed the inspection of the national quality inspection department. We have been focusing on providing integrated housing solutions for builders, design institutes, developers and building material dealers.
FAQ
Q1: Are you manufacture factory or trading company ?
A1: We are both manufacture factory and trading company . And you are welcomed to visit us at any time. The quality control flow and sales team will show you.Our factory located in the biggest supplier modular build production based of China--The city is Suzhou of Jiangsu Province.
Q2: What are your main products ?
A2:Our main products have prefab house, Assemble container house, Folding container house, Flat pack container house, sandwich panel and other steel constructive materials.
Q3: Is it difficult to build a prefab house ?
A3: Absolutely not, you can build the house independently according to the construction drawings as long as you know how to use an electric tool.
Q4: What will client provide before factory offers good quotation ?
A4:You tell us container house type, size, quantity, material of roof, wall, floor and other parts, we will check and fast offer you quotation.
Q5: Could you please design a new and unique prefab house for me ?
A5:Absolutely! We are able to provide you with not only construction scheme, but landscape design! One-stop service is our outstanding superiority with no doubt.
