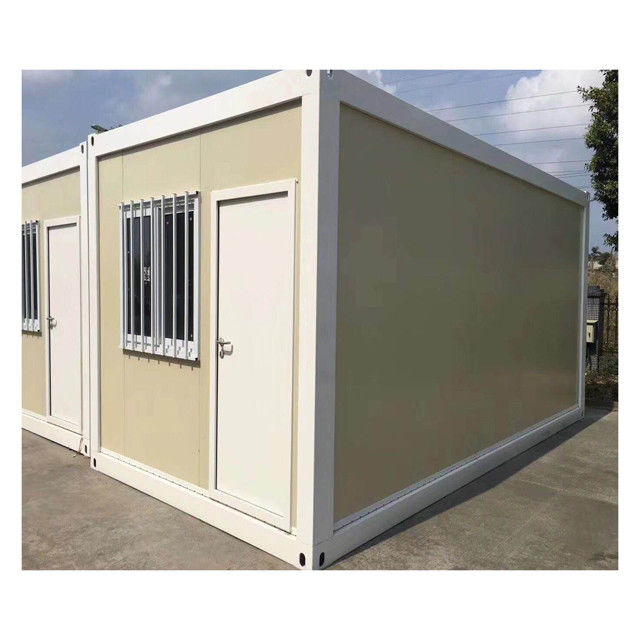

Easy Assemble Prefabricated Steel Tiny Container House flat pack container house
One-piece living prefabricated Modular house including bathroom toilet kitchen and bedroom
ZCS Container House Specifcation
|
External dimensions (L*W*H)
|
5950mm*3000mm*2800mm
|
|
Internal dimensions (L*W*H)
|
5750mm*2800mm*2500mm
|
|
Thermal insulation
|
λ=0.048W/m·K
|
|
Wind resistance
|
0.60kN/㎡
|
|
Sound insulation
|
≥30dB
|
|
Fire resistance
|
A 级
|
|
waterproof
|
16mm/min
|
|
Seismic performance
|
8级
|
|
Ground live load
|
2.0kN/㎡
|
|
Roof live load
|
1.0kN/㎡
|
|
Application scenario
|
Offices, accommodation, hotels, warehouses, shops
|
|
Accept custom sizes
|
L3000-9000mm
|
W1500-5000mm
|
H2200-3500mm
|
|
|
Main section
|
Top and bottom frame + column thickness 2.3mm or 3.0mm, Q235 material, galvanized surface
|
|
Horn head
|
Q235 material 4mm iron plate laser cutting, welding
|
|
Structural connection
|
M12×35 high strength bolt
|
|
Surface treatment
|
Electrostatic spraying, the United States DuPont plastic powder line spray paint
|
|
Bottom beam
|
1.2mm80*80, 40*80 galvanized square pipe
|
|
Top beam
|
1.5mm50*50, 1.1mm40*80, 40*60 galvanized square pipe
|
|
Rock wool board
|
Color steel composite plate thickness 50mm or 70mm, color steel plate thickness 0.3mm, color white gray, double-sided embossed;
The bulk weight of rock wool is 50kg/m³, and the combustion performance is Class A non-combustible.
|
|
Roof panel
|
Roof tile: 980 container special roof tile thickness 0.45mm
|
|
Insulating layer
|
Glass filament cotton roll felt, thickness 50mm, bulk weight 14kg/m³, combustion performance is class A non-combustible.
|
|
Suspended ceiling
|
980 ceiling tile, thickness 0.25mm
|
|
Flooring
|
18mm glass magnesium plate (no reverse halogen)
|
|
Ground treatment
|
Not process
|
|
Entrance door
|
Steel door set, size ≥W920mm×H2035mm, stainless steel door lock
|
|
Exterior window
|
Ordinary plastic steel window 920*1200mm, without screen window
|
|
Angular line
|
4*4 iron Angle aluminum edge
|
|
The lamp
|
Single tube LED×2 sets, 20W/ set
|
|
socket
|
10A five-hole socket x 1
|
|
Switch
|
One five holes x one
|
|
Distribution box
|
One electric box x 1
|
|
wiring
|
House cable and air conditioning cable 4 square, socket cable 2.5 square, lighting line 1.5 square
|
ZCS Container House Catalogue
| Model |
Size |
Area |
Structure |
| ZCS Container House-A1 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
|
17m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
|
| ZCS Container House-A2 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
|
17m2 |
Living room *1
Bedroom*1 |
| ZCS Container House-A3 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
|
17m2 |
Living room *1
Bedroom*1
Bathroom*1
Toilet*1 |
| ZCS Container House-A4 |
4m*3m*2.8m/13.12ft*9.84ft*9.18ft |
21.65m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
|
| ZCS Container House-A5 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
Deck*1 |
| ZCS Container House-A6 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
51m2 |
Living room *1
Bedroom*2
Bathroom*1
Toilet*1
Kitchen*1 |
| ZCS Container House-A7 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
51m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
|
| ZCS Container House-A8 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*3
Kitchen*1
Toilet*2
Bathroom*2 |
| ZCS Container House-A9 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
65m2 |
Living room *1
Bedroom*2
Bathroom*1
Toilet*1
Kitchen*1 |
| ZCS Container House-A10 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
51m2 |
Living room *1
Bedroom*2
Kitchen*1
Toilet*1
Deck*1 |
| ZCS Container House-B1 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
102m2 |
Living room *1
Bedroom*1
Bathroom*1
Toilet*1
Kitchen*1 |
| ZCS Container House-B2 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*1
Kitchen*1
Toilet*1
Terrace*1 |
| ZCS Container House-B3 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
68m2 |
Living room *1
Bedroom*3
Toilet*3
Kitchen*1 |
| ZCS Container House-B4 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft
5.95m*1.5m*2.8m /19.52ft*4.92ft*9.18ft |
97.2m2 |
Living room *3
Bedroom*3
Toilet*3
Terrace*1
Kitchen*2 |
| ZCS Container House-B5 |
5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
102m2 |
Living room *2
Bedroom*3
Kitchen*1
Toilet*2
Terrace*1
|
