| Place of Origin | Jiangsu, China |
| Brand Name | ZCS |

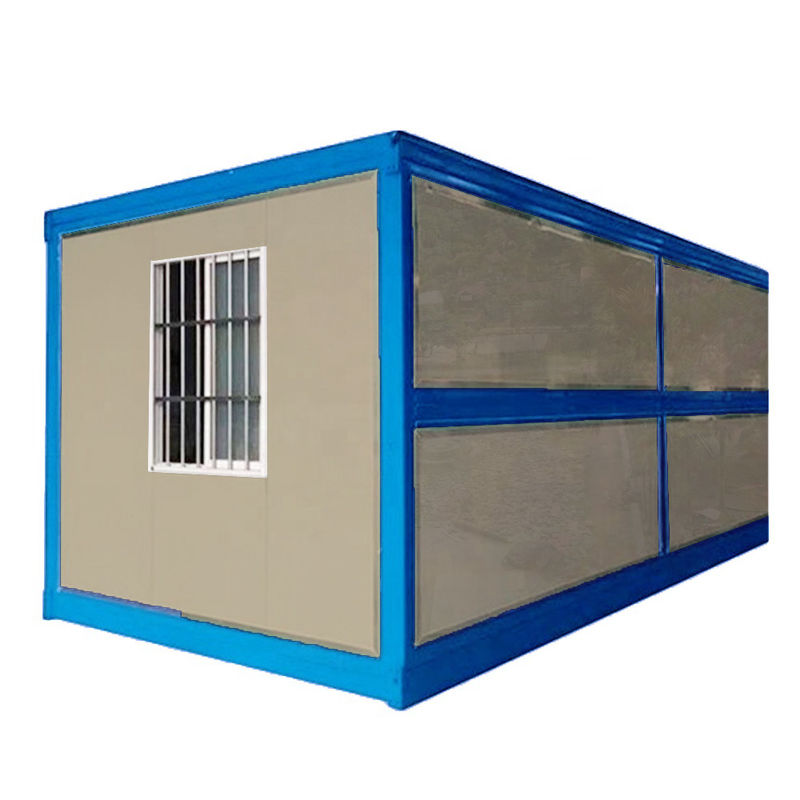

One-piece living prefabricated Modular house including bathroom toilet kitchen and bedroom
ZCS Container House Specifcation
|
Container House Parameter
|
|||
|
1
|
Design Parameter
|
Product Name
|
Modular Holiday House /Townhouse /Casa /Container Van/Mobile Cabins with Toilet, Shower and Kitchen
|
|
Main Material
|
Q235B Steeel
|
||
|
Per Unit Container Size of the Compound
|
L6058*W2438*H2896mm
|
||
|
Storey
|
Usually no more than 3 storeys
|
||
|
Life Span
|
Up to 20 years
|
||
|
Earthquake Resistance
|
Grade 8
|
||
|
Refractory Grade
|
Grade A(Noncombustible Building Materials)
|
||
|
Surface
|
Polyester Powder Coatings, electrostatic spray, Thickness≥80μm (Environmental protection and pollution-free)
|
||
|
Floor Live Load
|
2.0KN/m2 --(204KGF)
|
||
|
Roof Live Load
|
1.0KN/m2 --(102KGF)
|
||
|
Wind Load
|
1.2KN/m2 --(120.4KGF)
|
||
|
2
|
Roof System
|
Roof Type
|
Flat or sloping roof with organized internal water draining design
|
|
Steel Frame
|
Main Steel Frame: Galvanized Cold-Formed Steel
|
||
|
Roof Panel
|
Aluminum-Zinc Color Steel Sheet, PE Finishing Coat, 360° Full Connection
|
||
|
Insulation
|
|||
|
Ceiling Board
|
Aluminum-Zinc Color Steel Sheet, PE Finishing Coat.
|
||
|
Industrial Socket
|
Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers
|
||
|
3
|
|
Corner Pillar
|
4PCS Galvanized-Cold rolled steel; Corner pillar and main frame are joined by hexagon socket head bolt and corner fittings which grade 8.8
strength |
|
4
|
Wall System:
Rock Wool Board,
Sandwich Panel
|
Size
|
Thickness: 50-75mm
|
|
Exterior/Interior Color Plate (standard configuration)
|
Corrugated Aluminum-Zinc Color Steel Sheet, PE Finishing Coat
|
||
|
Insulation Layer (standard configuration)
|
75mm Rock Wool Board
|
||
|
Fire-Proof Standard
|
Grade A Non-Flammable
|
||
|
5
|
Floor System
|
Steel Frame
|
Main Steel Frame: Galvanized cold-Formed Steel
|
|
Floor Board
|
Cement Pressure Plate, MgO board, etc, Grade A Non-flammable
|
||
|
Interior Flooring
|
Plastic Board, etc, the color alternative
|
||
|
6
|
Door & Window
|
Insulated Light Steel Door
|
Glass sliding door is also available.
|
|
Plastic Steel Window
|
Double glass with mosquito screen and security bar. Aluminum alloy window is also available.
|
||
ZCS Container House Catalogue
| Model | Size | Area | Structure |
| ZCS Container House-A1 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
17m2 | Living room *1 Bedroom*1 Kitchen*1 Toilet*1 |
| ZCS Container House-A2 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
17m2 | Living room *1 Bedroom*1 |
| ZCS Container House-A3 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft |
17m2 | Living room *1 Bedroom*1 Bathroom*1 Toilet*1 |
| ZCS Container House-A4 | 4m*3m*2.8m/13.12ft*9.84ft*9.18ft | 21.65m2 | Living room *1 Bedroom*1 Kitchen*1 Toilet*1 |
| ZCS Container House-A5 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft | 68m2 | Living room *1 Bedroom*1 Kitchen*1 Toilet*1 Deck*1 |
| ZCS Container House-A6 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft | 51m2 | Living room *1 Bedroom*2 Bathroom*1 Toilet*1 Kitchen*1 |
| ZCS Container House-A7 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft | 51m2 | Living room *1 Bedroom*1 Kitchen*1 Toilet*1 |
| ZCS Container House-A8 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft | 68m2 | Living room *1 Bedroom*3 Kitchen*1 Toilet*2 Bathroom*2 |
| ZCS Container House-A9 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft | 65m2 | Living room *1 Bedroom*2 Bathroom*1 Toilet*1 Kitchen*1 |
| ZCS Container House-A10 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft | 51m2 | Living room *1 Bedroom*2 Kitchen*1 Toilet*1 Deck*1 |
| ZCS Container House-B1 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft | 102m2 | Living room *1 Bedroom*1 Bathroom*1 Toilet*1 Kitchen*1 |
| ZCS Container House-B2 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft | 68m2 | Living room *1 Bedroom*1 Kitchen*1 Toilet*1 Terrace*1 |
| ZCS Container House-B3 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft | 68m2 | Living room *1 Bedroom*3 Toilet*3 Kitchen*1 |
| ZCS Container House-B4 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft 5.95m*1.5m*2.8m /19.52ft*4.92ft*9.18ft |
97.2m2 | Living room *3 Bedroom*3 Toilet*3 Terrace*1 Kitchen*2 |
| ZCS Container House-B5 | 5.95m*3m*2.8m /19.52ft*9.84ft*9.18ft | 102m2 | Living room *2 Bedroom*3 Kitchen*1 Toilet*2 Terrace*1 |
