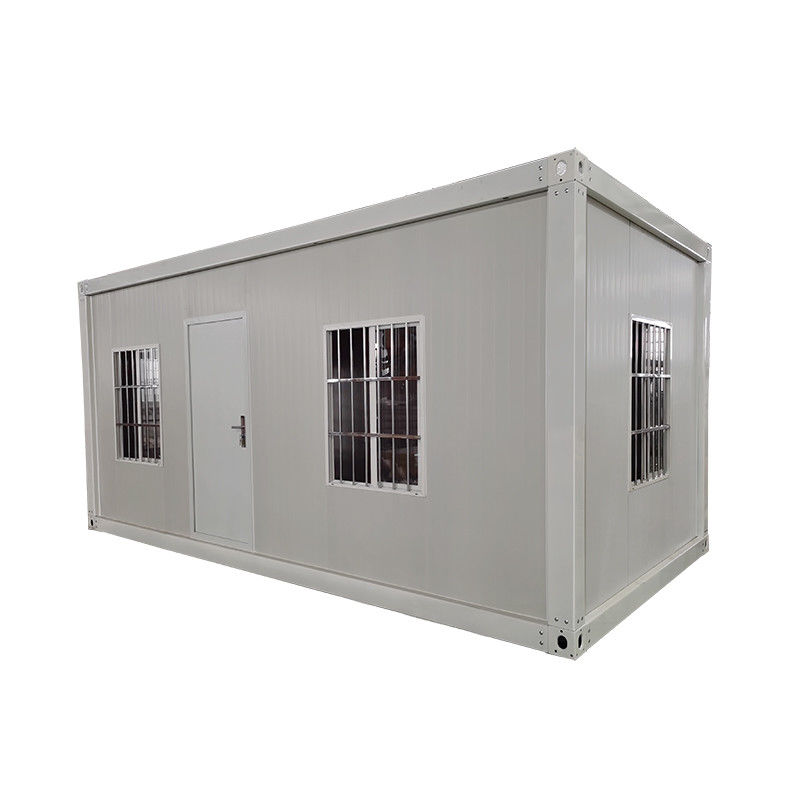

One-piece living prefabricated Modular house including bathroom toilet kitchen and bedroom
ZCS Container House Specifcation
|
Parts
|
Part Name
|
Standard material
|
Optional
|
|
Top frame system
|
Upper corner piece
|
3.5mm upper corner piece, zinc plating amount 80g/㎡ 210*150*210mm
|
no
|
|
Main beam of roof (long)
|
3.0mm galvanized forming beam, zinc plating amount 80g/㎡, width: 170mm, length: 5633mm
|
2.0mm-3.0mm
|
|
Roof main beam (short)
|
3.0mm galvanized forming beam, galvanizing amount 80g/㎡, width: 170mm, length: 2688mm
|
2.0mm-3.0mm
|
|
Roof roof
|
75mm glass wool + tin foil paper, 14kg/m³
|
0.4mm-0.6mm
|
|
Roof insulation
|
C-shaped steel 90*1.3mm, square tube 20*20*1.0mm, galvanizing amount 80g/㎡
|
100mm
|
|
Roof secondary beam
|
0.4mm, 831 color steel integrated ceiling board, laminated
|
Negotiable
|
|
Ceiling board
|
Electrostatic spraying (white)
|
0.4mm-0.6mm
|
|
Surface treatment
|
3.5mm upper corner piece, galvanizing amount 80g/㎡ 210*150*160mm
|
Color can be customized
|
|
Low frame system
|
Lower corner pieces
|
3.0mm galvanized forming beam, zinc plating amount 80g/㎡, width: 160mm, length: 5633mm
|
no
|
|
Ground main beam (long)
|
3.0mm galvanized forming beam, galvanizing amount 80g/㎡, width: 160mm, length: 2688mm
|
2.0mm-3.0mm
|
|
Ground main beam (short)
|
1.6mm floor leather
|
2.0mm-3.0mm
|
|
Floor paving
|
1.0mm waterproof membrane
|
1.0mm floor leather, 1.6 plastic floor, 2.0 plastic floor, wooden floor
|
|
Waterproof membrane
|
18mm cement modified board
|
no
|
|
ground
|
75mm glass wool + tin foil paper, 14kg/m³
|
15mm cement modified board, 18mm cement fiber board, 15mm multilayer board
|
|
Ground insulation
|
75mm glass wool + tin foil paper, 14kg/m³
|
100mm
|
|
Roof secondary beam
|
3.0mm galvanized column, zinc plating amount 80g/㎡ 210mm*150mm, height 2520mm
|
Negotiable
|
|
Back cover color steel plate
|
Ø50mm, white PVC
|
0.4mm-0.6mm
|
|
Surface treatment
|
75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³
|
Color can be customized
|
|
Wall system
|
Prism
|
3.0mm galvanized column, zinc plating amount 80g/㎡ 210mm*150mm, height 2520mm
|
2.0mm-3.0mm
|
|
Drain pipe
|
Ø50mm, white PVC
|
no
|
|
Wall panel
|
75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³
|
50mm/100mm, 0.4mm-0.6mm, 50kg-120kg/m³
|
|
High-equipped anti-theft door
|
840mm*2035mm, made of steel
|
970mm*1970mm, equipped with anti-theft door
|
|
High-equipped anti-theft window
|
1130mm*1130mm, double glass double push
|
925mm*1130mm, single glass single push plastic steel window
|
About US
Suzhou Zhongchengsheng International Trade Co., Ltd is located in Suzhou City. Our production factory is Suzhou Zhongchengsheng Metal Material Manufacture Co., Ltd. which is a professional enterprise in China's light steel construction industry and a high -tech industrial company integrating R & D, production and sales. Our main products are assembled container house, folding container house, flat pack container house, assemble container house, steel structure house and so on.
We have a perfect supply chain with more than 16 years of experience in raw materials and manufacturing, and can manufacture houses to the satisfaction of our customers according to their customized needs. We are committed to providing first- class quality and efficient pre- sales and after- sales services, and strictly control the quality of our products. Our company has passed the inspection of the national quality inspection department. We have been focusing on providing integrated housing solutions for builders, design institutes, developers and building material dealers.
FAQ
Q1: Are you manufacture factory or trading company ?
A1: We are both manufacture factory and trading company . And you are welcomed to visit us at any time. The quality control flow and sales team will show you.Our factory located in the biggest supplier modular build production based of China--The city is Suzhou of Jiangsu Province.
Q2: What are your main products ?
A2:Our main products have prefab house, Assemble container house, Folding container house, Flat pack container house, sandwich panel and other steel constructive materials.
Q3: Is it difficult to build a prefab house ?
A3: Absolutely not, you can build the house independently according to the construction drawings as long as you know how to use an electric tool.
Q4: What will client provide before factory offers good quotation ?
A4:You tell us container house type, size, quantity, material of roof, wall, floor and other parts, we will check and fast offer you quotation.
Q5: Could you please design a new and unique prefab house for me ?
A5:Absolutely! We are able to provide you with not only construction scheme, but landscape design! One-stop service is our outstanding superiority with no doubt.
